Project / Lam Soon Distribution Centres (DC)
— Senai DC, Johor (2006)
— Bukit Minyak DC, Penang (2012)
— Senai DC II, Johor (2013)
— Marsiling, Singapore (2014)
Task /  Signage System Design & Guidelines
Client / Lam Soon Group (Singapore & Malaysia)
Year / 2006–2014



The first project, Senai DC, near Senai International Airport in Johor, comprised a five-star hospitality centre (lounge, retail gallery, a fully equipped kitchen to conduct cooking demonstrations, and a dining area), office and warehouse.

The design of Senai DC’s signage takes its cue from the architecture: the building’s curves, the columns’ tilt at 5º, and the openness of the interior spaces, especially the spacious kitchen and dining areas. The signage system’s core elements were then applied consistently across subsequent properties.

 Measuring up in preparation for Lam Soon’s new signage system. We have to determine the users’ different viewpoints and viewing distances when designing sign information for the cavernous space of the warehouse.

Measuring up in preparation for Lam Soon’s new signage system. We have to determine the users’ different viewpoints and viewing distances when designing sign information for the cavernous space of the warehouse.


Brand Alignment

Aside from complementing the architecture, signage system design must also align with the visual identity and corporate culture of the company.

LS_Lam Soon_Standing Sign.jpg
LS_Achieving Transparency.jpg
 Senai DC has a large kitchen and dining area, with an ambience similar to a 5-star hotel. We gave each area a name that reflects its function—cook@Senai, bake@Senai and eat@Senai.

Senai DC has a large kitchen and dining area, with an ambience similar to a 5-star hotel. We gave each area a name that reflects its function—cook@Senai, bake@Senai and eat@Senai.


Maintenance and Management

A comprehensive Signage Guidelines Manual was completed in 2015 for maintenance and management, and as a master reference for replacement or expanding the sign system for future properties. Sample pages follow...

Lam Soon Signage Guidelines_2016-01-10 1_Outline.png
Lam Soon Signage Guidelines_2016-01-10 4_Outline.png
Lam Soon Signage Guidelines_2016-01-10 5_Outline.png
Lam Soon Signage Guidelines_2016-01-10 6_Outline.png

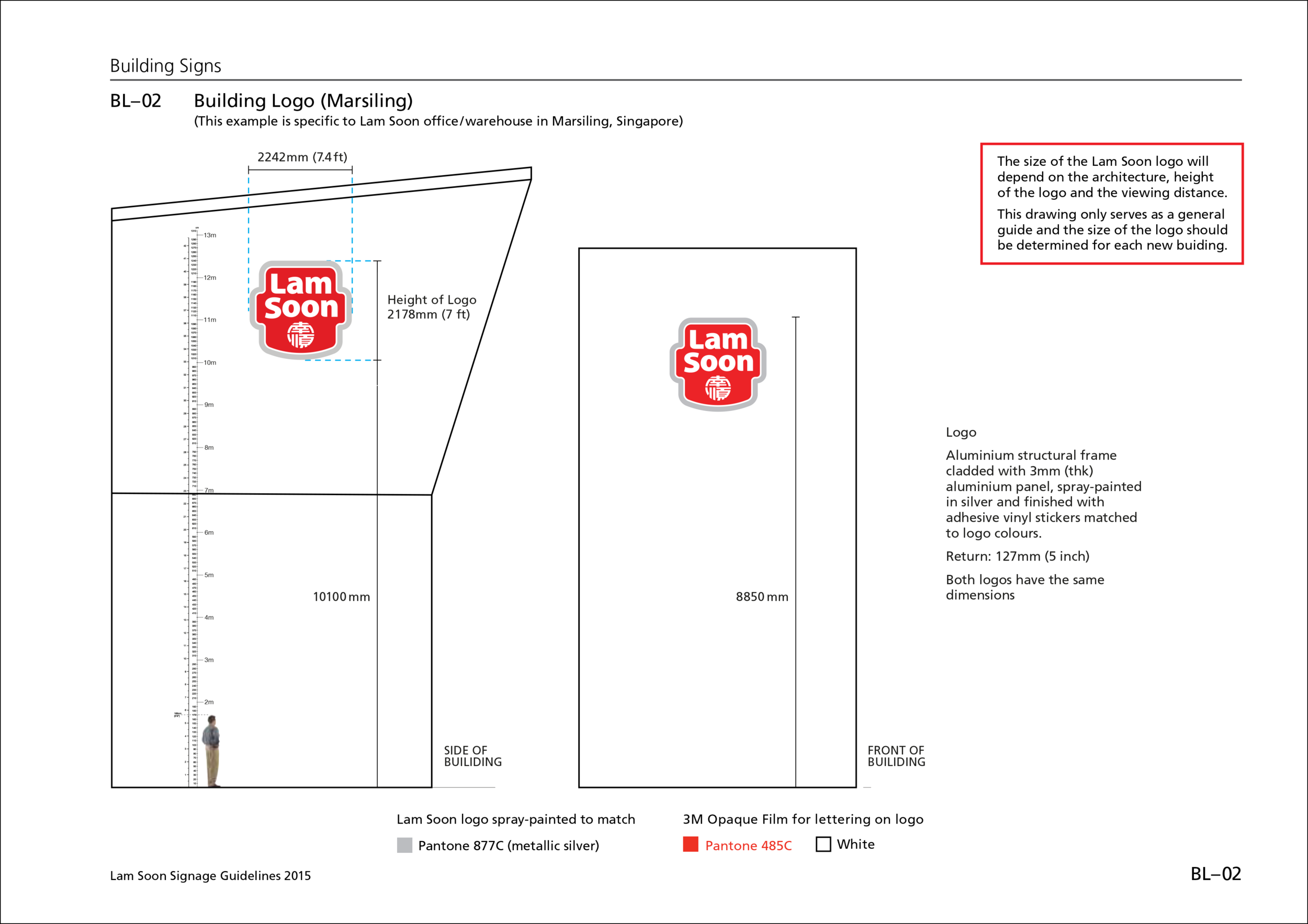

 A simple system was devised for the precise placement of logo, descriptor (e.g. Pusat Logistik) and address group.

A simple system was devised for the precise placement of logo, descriptor (e.g. Pusat Logistik) and address group.


 Guidelines for the placement of information on the entrance wall. This will ensure consistency across different properties.

Guidelines for the placement of information on the entrance wall. This will ensure consistency across different properties.


Lam Soon Signage Guidelines_2016-01-10 10_Outline.png
Lam Soon Signage Guidelines_2016-01-10 11_Outline.png

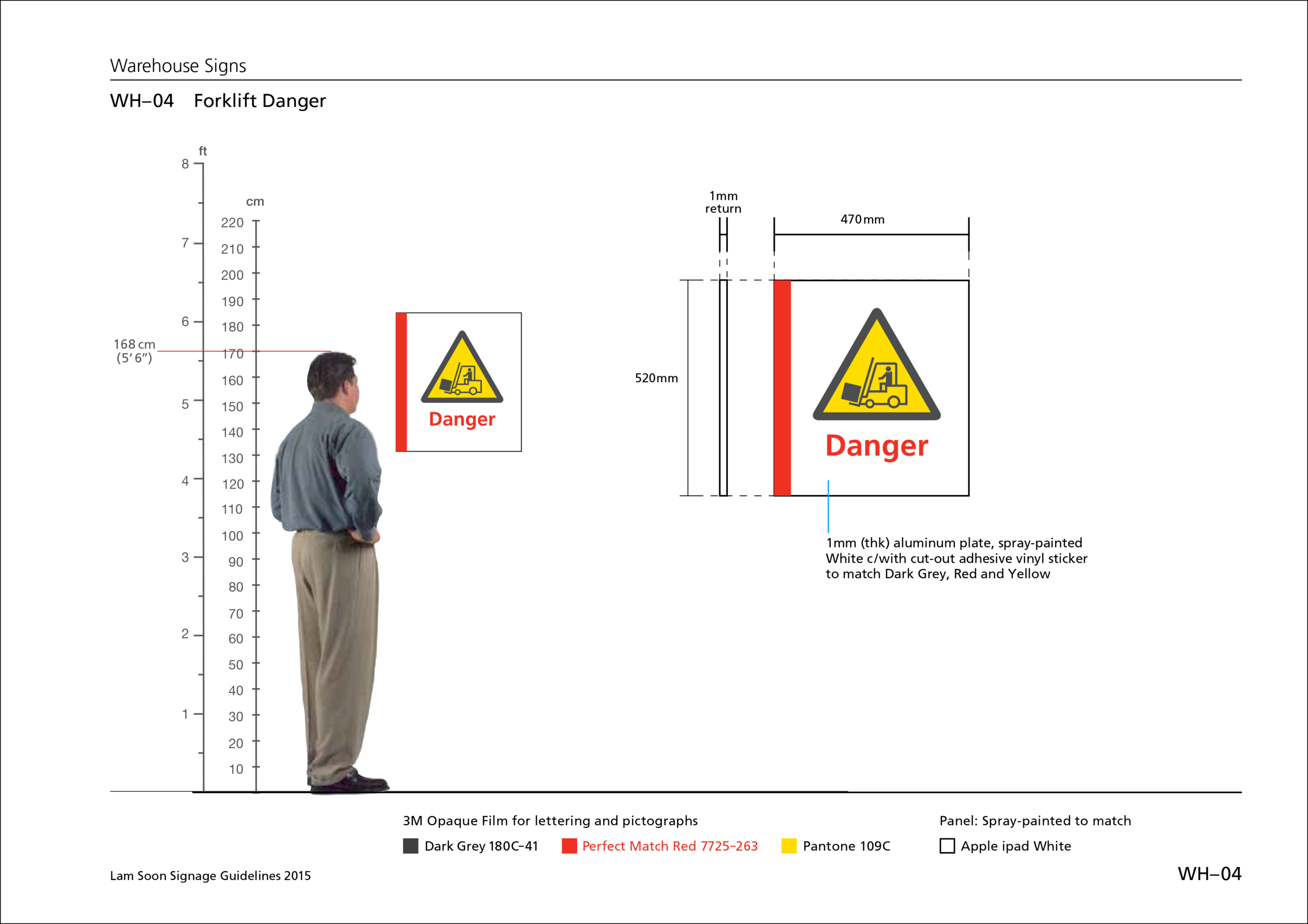

 With various potential hazards at the warehouse, such as forklifts constantly traversing along the aisles, workers’ safety was a priority that had to be addressed with well-placed caution signs and floor markings.

With various potential hazards at the warehouse, such as forklifts constantly traversing along the aisles, workers’ safety was a priority that had to be addressed with well-placed caution signs and floor markings.

 Lam Soon Bukit Minyak DC was the first Green Building Index (GBI)-certified distribution centre in Malaysia. A new chapter on GBI-related signs was added to the Guidelines.

Lam Soon Bukit Minyak DC was the first Green Building Index (GBI)-certified distribution centre in Malaysia. A new chapter on GBI-related signs was added to the Guidelines.



Signs were standardised across all four distribution centres.


Customisation and Localisation

No Guidelines Manual can cover every aspect of a building as the architecture invariably differs from one building to the other. As such, Lam Soon's Guidelines Manual was created with consideration for any necessary customisation.

There was also a need for localisation and special needs. In Lam Soon@Marsiling Singapore, the Malay language is used for some signs to cater to its large foreign workforce (although Malay is the National Language of Singapore, it is rarely used in sign systems, except in transportation hubs, e.g. MRT stations and airport).

Each warehouse/office has unique architectural features. Lam Soon@Marsiling (below) has a large portal which we applied the company’s signature red.

LSM_Ext 3_Entrance Canopy_Marsiling Rd_v12_FA_A4.png
 Pylon sign for Senai DC

Pylon sign for Senai DC
